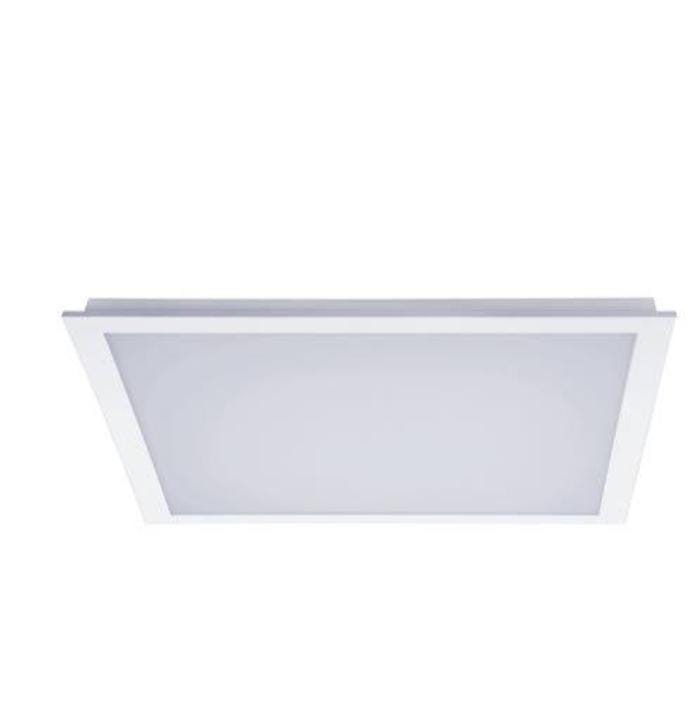

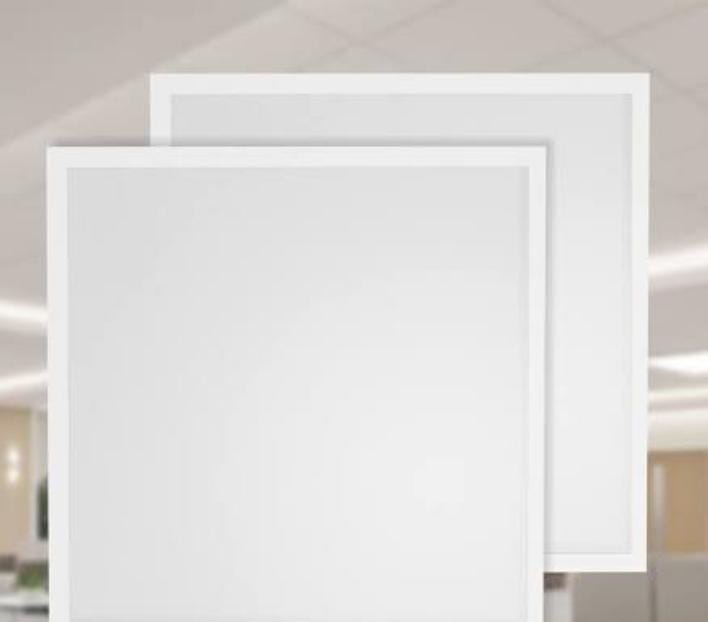

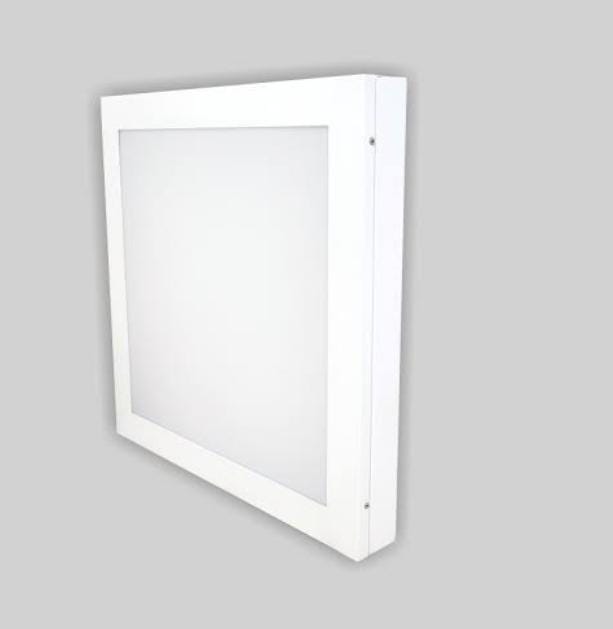

2*2 SLIM PANEL LIGHT

2*2 SLIM PANEL LIGHT Specification

Current Rating
180-400mA (depending on variant)

Power Supply
External Constant Current LED Driver

Efficiency (%)
>90%

Light Color
Warm White / Cool White / Natural White

Control Type
On/Off (Dimmable on request)

Housing
Aluminum Alloy

Humidity %
<95% RH

Operating Temperature
-10C to 50C

Response Time
Instant Start (<0.2s)

Shape
Square

Life Span
>40,000 Hours

Beam
120 (Wide Beam Angle)

Product Type
Slim LED Panel Light

Material
Aluminum Frame + Polycarbonate Diffuser

Base
Recessed / Surface / Ceiling Mount

Power Factor
>0.9

Input Voltage
AC 85-265V

Working Temperature
-10C to 50C

Lamp Power
36W / 40W (available variants)

Application
Commercial, Office, Hospital, Educational Institutions

Size
2 Feet x 2 Feet

Dimension (L*W*H)
600mm x 600mm x 10mm (typical for 2x2 panel)

Weight
2.5 kg (approx.)

Color
White

LED Type
SMD (Surface Mounted Device)

Color Temperature
3000K / 4000K / 6000K

IP Rating
IP20

Surge Protection
Up to 2.5 KV

Dimming Option
Available (Optional)

Flicker Free
Yes

THD (Total Harmonic Distortion)
<20%

Mounting Type
Recessed, Surface, Pendant

Luminous Flux
3600-4000 Lumens (depending on variant)

Input Cable Length
1 Meter (standard)

CRI (Color Rendering Index)
>80

2*2 SLIM PANEL LIGHT About

22 Slim Panel Light 36W is a modern, energy-efficient LED lighting solution designed to provide bright, uniform and glare-free illumination. With its ultra-slim square design, it is ideal for false ceilings and modern indoor spaces. Typical 22 panels are around 595595 mm and are available in Cool White, Neutral White and Warm White.

Key Features:

Power: 36W
Size: 22 ft / approximately 595595 mm
Shape: Square
Light: Bright & uniform illumination
Design: Ultra-slim and stylish
Mounting: Recessed / False Ceiling
Light Colours: Cool White, Neutral White & Warm White
Low Power Consumption
Glare-Free & Eye-Friendly
Long Life & Low Maintenance
Wide Beam Angle: Up to 120 depending on model

Applications: Offices, homes, schools, hospitals, hotels, showrooms, malls, banks, conference rooms and commercial buildings.

Versatile Installation Options

The 2x2 Slim Panel Light is designed for flexibility, accommodating recessed, surface, and pendant mounting. Its light-weight aluminum frame and slim 10mm profile make installation straightforward, whether you're retrofitting existing ceilings or outfitting new spaces. A standard 1-meter input cable allows for convenient wiring, ensuring a broad range of application scenarios.

Superior Light Quality and Efficiency

Enjoy high performance with a CRI above 80 for true color representation, and over 90% efficiency. The panel produces a wide, uniform 120 beam with up to 4000 lumens, offering ample light coverage. Advanced SMD LED technology and an external constant current driver guarantee stable, flicker-free illumination and low harmonic distortion (<20%).

Reliable and Long-Lasting Solution

Engineered for demanding environments, this panel operates in a wide temperature range (-10C to 50C) and handles up to 95% humidity. With surge protection up to 2.5 KV and a rated lifespan exceeding 40,000 hours, it offers dependable lighting with minimal maintenance-ideal for offices, hospitals, schools, and commercial spaces.

FAQ's of 2*2 SLIM PANEL LIGHT:

Q: How can the 2x2 Slim Panel Light be installed?

A: This panel light supports recessed, surface, and pendant mounting, providing flexibility to suit different ceiling types. Installation is made easy with its slim design and a 1-meter input cable included as standard.

Q: What are the main benefits of using this slim panel light in commercial or institutional spaces?

A: The panel delivers high luminosity with consistent color accuracy due to its CRI >80, operates flicker-free to reduce eye strain, and boasts a long operational life of over 40,000 hours, making it a cost-effective lighting solution for offices, hospitals, and schools.

Q: What dimming options are available for this panel light?

A: A dimmable version is available upon request. The standard panel supports on/off control, but if dimming is needed, it can be supplied with a compatible dimming driver for adjustable brightness.

Q: Where is this type of panel light most commonly used?

A: These slim panel lights are commonly installed in commercial buildings, offices, hospitals, and educational institutions due to their broad beam angle, efficient light distribution, and versatile mounting options.

Q: How does the panel ensure energy efficiency and reliability?

A: With a power factor greater than 0.9 and efficiency over 90%, the panel minimizes energy loss. Built-in surge protection (up to 2.5 KV) ensures safe operation, while the aluminum alloy housing and polycarbonate diffuser enhance durability.

Q: What color temperature and light color options are available?

A: The panel is available in 3000K (Warm White), 4000K (Natural White), and 6000K (Cool White), allowing users to select the appropriate color temperature based on their environment and preference.
