22w Slim square panel

22w Slim square panel Specification

Current Rating
0.11A-0.13A

Response Time
<1s

Humidity %
10% - 90% RH

Efficiency (%)
>85%

Shape
Square

Operating Temperature
-10C to 50C

Life Span
>30,000 Hours

Housing
Aluminium Body

Light Color
Warm White, Neutral White, Cool White

Power Supply
External Driver

Control Type
Standard On/Off

Beam
120

Product Type
Slim Square LED Panel Light

Material
Aluminium & Polycarbonate

Base
Recessed Mount

Power Factor
>0.95

Input Voltage
AC 85-265V

Working Temperature
-10C to 50C

Lamp Power
22W

Application
Office, Commercial, Home, Showrooms

Size
225mm

Dimension (L*W*H)
225mm x 225mm x 18mm

Weight
Approx. 450g

Color
White

LED Type
SMD LED

Color Temperature
3000K, 4000K, 6500K

IP Rating
IP20

Luminous Flux
2200 lm

Dimmable
Optional

Surge Protection
Up to 2.5KV

Flicker Free
Yes

Mounting Type
Recessed

Start-Up Time
Instant

Driver Efficiency
>85%

CRI (Color Rendering Index)
>80

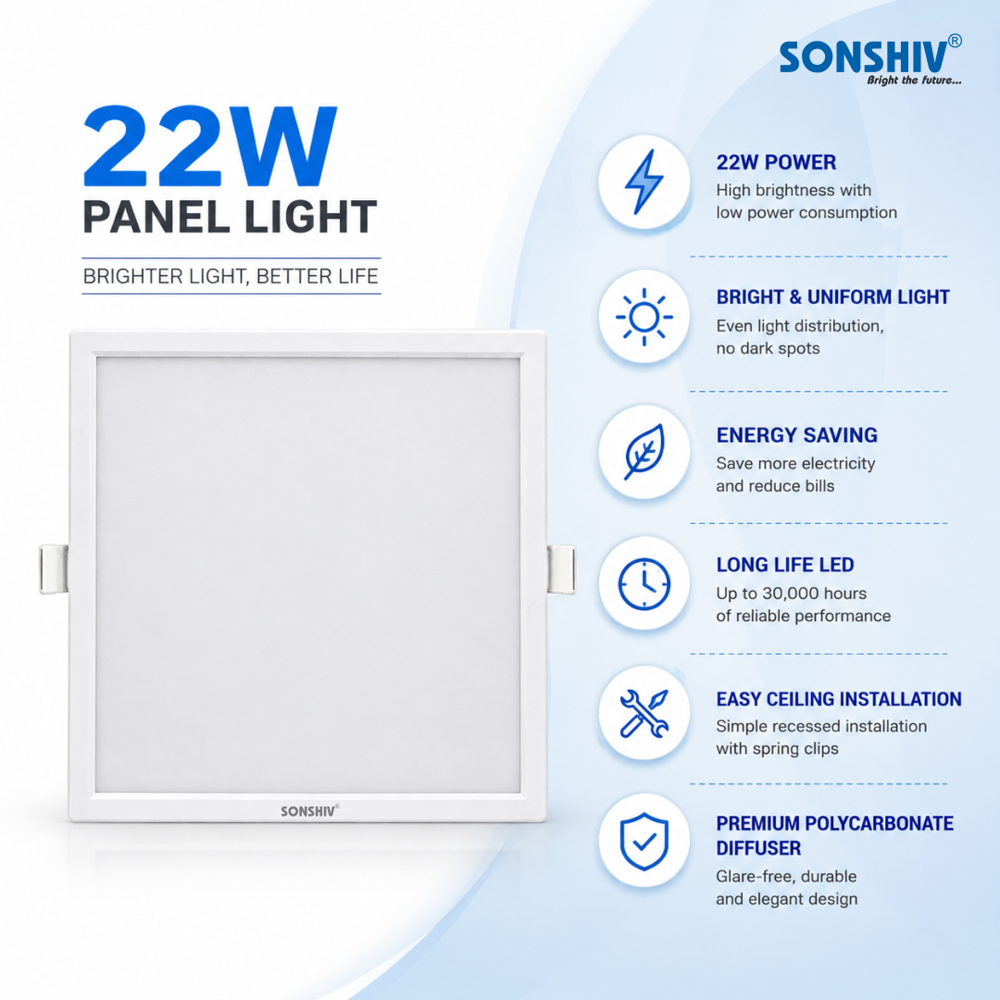

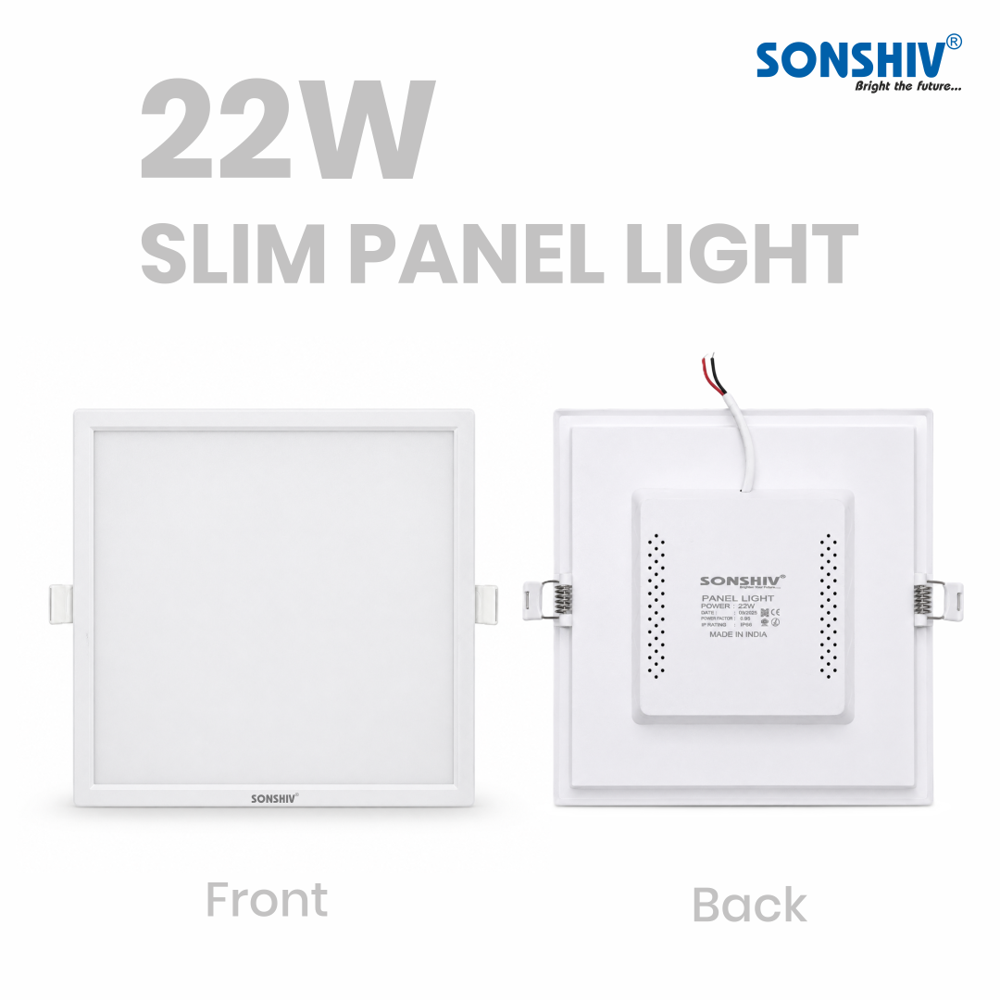

22w Slim square panel About

22W Slim Square LED Panel Light is a stylish and energy-efficient lighting solution designed to provide bright, uniform, and comfortable illumination. Its slim square design gives ceilings a clean and modern appearance, making it suitable for both residential and commercial spaces.

The panel uses efficient LED technology to deliver excellent brightness with low power consumption. Its compact and lightweight design allows convenient installation in various indoor applications.

Key Features:

Power: 22W
Shape: Square
Slim and modern design
Bright and uniform illumination
Energy-efficient LED technology
Low power consumption
Excellent heat management
Easy installation and maintenance
Suitable for long operating hours

Applications: Homes, offices, shops, showrooms, hotels, restaurants, schools, reception areas, corridors, and commercial buildings.

High-Efficiency Lighting Performance

The panel delivers powerful and efficient illumination with a luminous output of 2200 lm, ensuring optimal brightness for workspaces and living areas. Its driver efficiency exceeds 85%, combined with a high power factor above 0.95, promoting energy savings and reduced electricity costs without compromising performance.

Versatile Mounting and Design

Designed for recessed mounting, this slim square panel fits seamlessly into modern ceilings and delivers a clean finish. The durable aluminium body and polycarbonate cover enhance longevity and safety, while its pure white finish complements any decor.

Customizable Ambience

With three color temperature choices-warm white, neutral white, and cool white-this panel adapts to varying mood and functional requirements. Optional dimmable control further allows complete ambiance customization in your chosen environment.

FAQ's of 22w Slim square panel:

Q: How is the 22W Slim Square Panel installed?

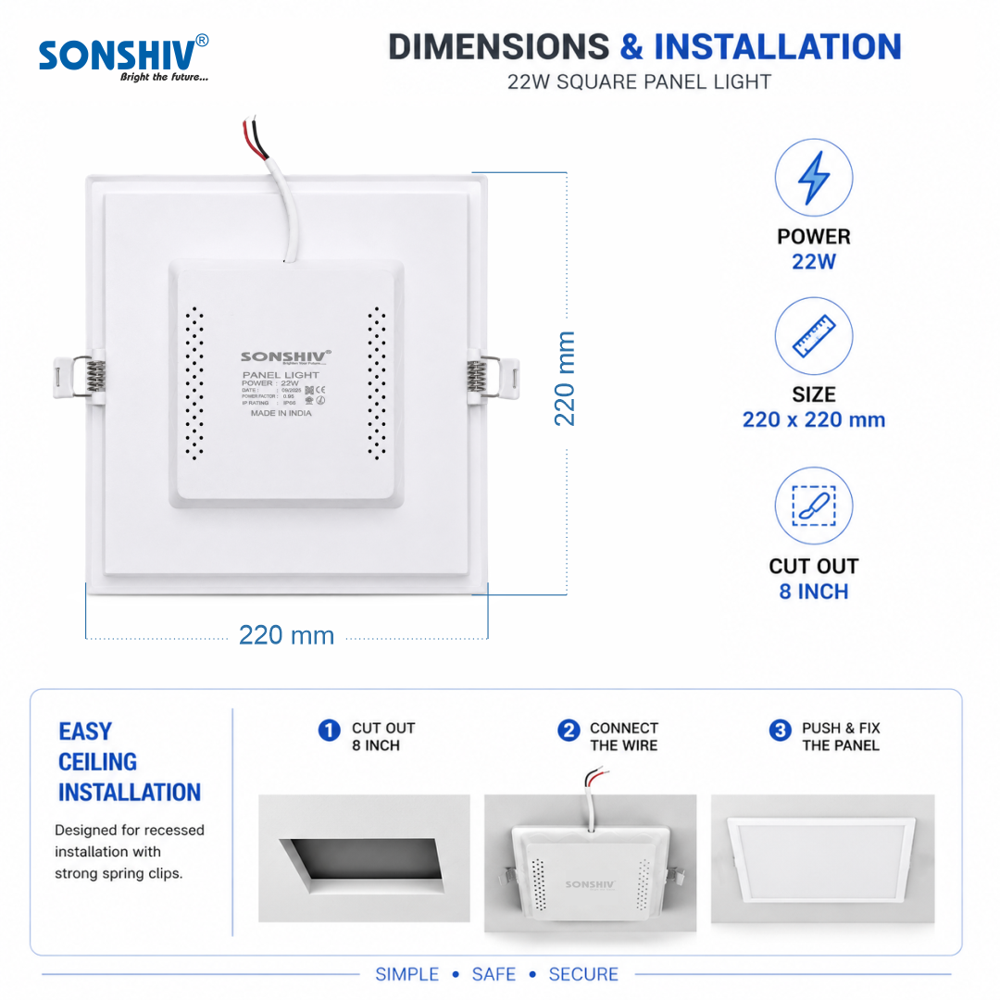

A: The panel is designed for recessed mounting into ceilings. Simply cut an appropriately sized hole, connect the external driver to an AC 85-265V power supply, and secure the panel using the provided clips. It's compatible with most standard ceiling types.

Q: What advantages does the panel's high CRI (>80) offer?

A: A high Color Rendering Index ensures that colors appear natural and vibrant under the light. This makes it ideal for settings where accurate color representation is important, such as offices, showrooms, and retail spaces.

Q: When should I consider using the optional dimmable feature?

A: Choose the dimmable version for areas requiring flexible lighting levels, such as conference rooms or living areas. Dimmability allows you to adjust brightness according to the desired ambiance or specific tasks.

Q: Where can the 22W Slim Square Panel be used effectively?

A: Its design and performance make it suitable for offices, commercial premises, homes, and showrooms. The panel's neutral design integrates well in both professional and residential settings.

Q: What processes ensure the panel is safe during power surges?

A: Equipped with built-in surge protection up to 2.5KV, the panel safeguards against voltage spikes, thereby extending its lifespan and ensuring safe operation in variable power conditions.

Q: How does the flicker-free operation benefit users?

A: Flicker-free lighting reduces eye strain, headaches, and fatigue, making it particularly beneficial in environments where people spend long hours under artificial light.

Q: What is the expected lifespan and maintenance requirement?

A: The panel boasts a lifespan of over 30,000 hours, minimizing the need for frequent replacements. Maintenance is minimal, typically only requiring occasional cleaning of the external surface.
