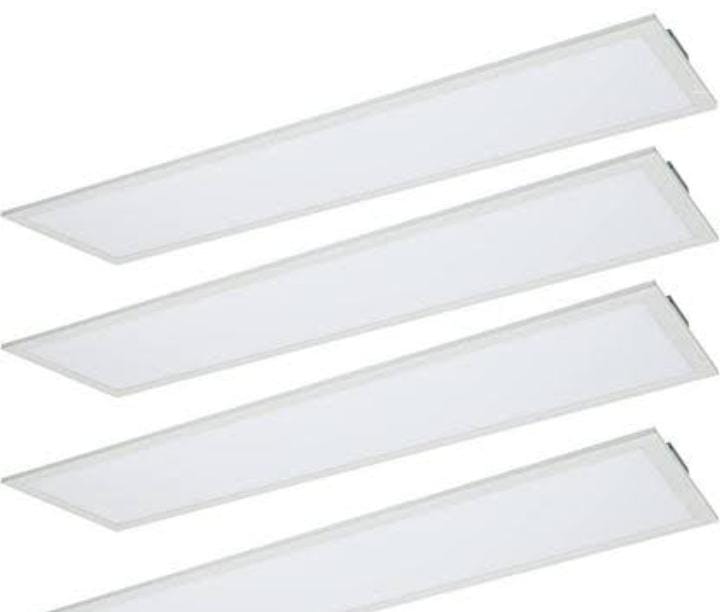

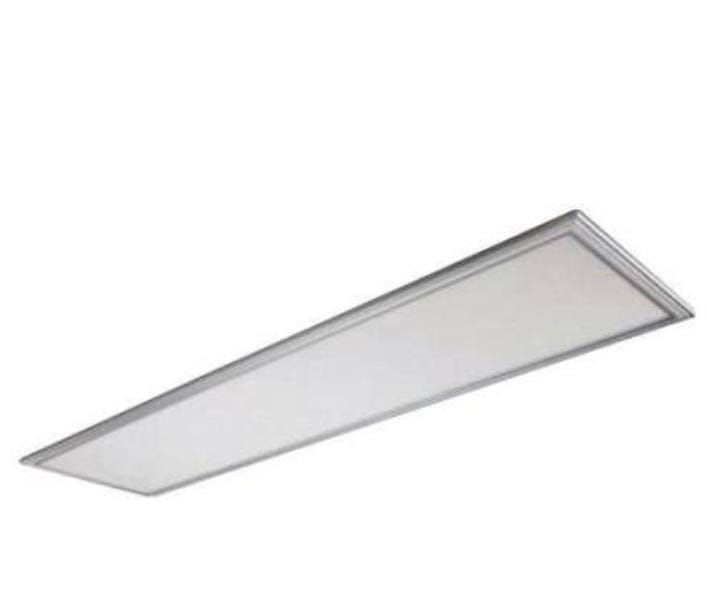

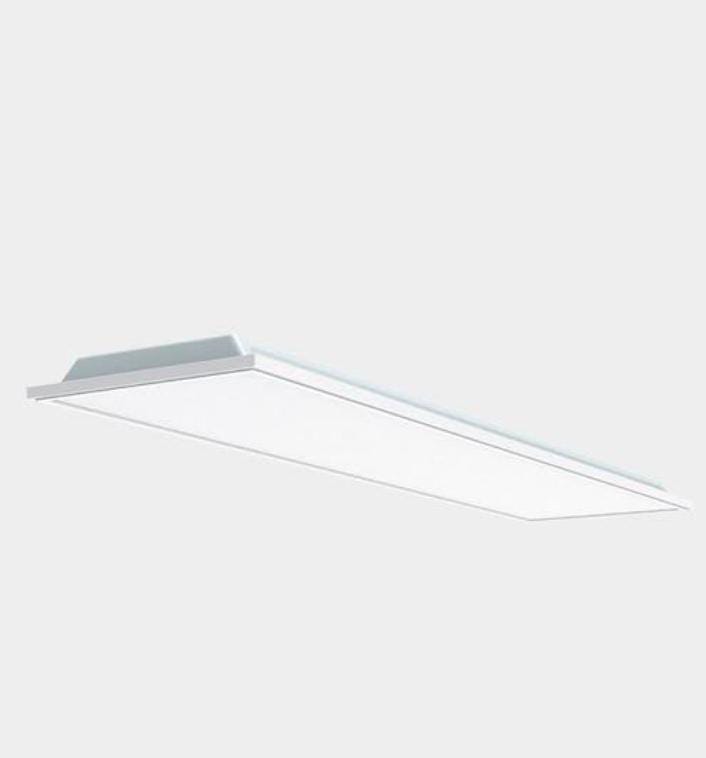

1*4 SLIM PANEL LIGHT

1*4 SLIM PANEL LIGHT Specification

Light Color
Warm White / Cool White / Daylight

Life Span
>50,000 hours

Response Time
Instant On (<1s)

Beam
120

Shape
Rectangular

Operating Temperature
-10C to 45C

Power Supply
External Driver

Humidity %
10%-90% RH, Non-condensing

Current Rating
0.18 - 0.20A

Control Type
On/Off (Dimmable option on request)

Efficiency (%)
>85%

Housing
Aluminium

Product Type
Slim Panel Light

Material
Aluminum frame, Polycarbonate diffuser

Base
Recessed / Ceiling Surface / Suspended Mounting

Power Factor
>0.95

Input Voltage
AC 100-277V

Working Temperature
-20C to +50C

Lamp Power
36W / 40W / 45W (custom options available)

Application
Offices, Hospitals, Commercial Buildings, Schools

Size
1ft x 4ft

Dimension (L*W*H)
1 ft x 4 ft x 0.75 in (approx)

Weight
2.5 kg (approx)

Color
White

LED Type
SMD LED

Color Temperature
3000K / 4000K / 6000K

IP Rating
IP20

Flicker Free
Yes

Luminous Efficacy
>100 lm/W

THD (Total Harmonic Distortion)
<15%

CRI (Color Rendering Index)
>80

Driver Type
Isolated, High-efficiency

Dimming
Optional (0-10V, Triac, DALI on request)

Installation
Recessed/Suspended/Surface

1*4 SLIM PANEL LIGHT About

11 Slim Panel Light is a compact, modern and energy-efficient LED lighting solution designed to provide bright and uniform illumination. Its ultra-slim square design makes it suitable for false ceilings and indoor applications. Slim square panels are commonly available in aluminium bodies with wide-voltage operation and different colour temperatures. (Tradeindia)

Key Features:

Power: 12W
Size: 11 ft
Shape: Square
Body: Aluminium
Design: Ultra Slim & Stylish
Light: Bright and Uniform
Colour Options: Cool White / Neutral White / Warm White
Low Power Consumption
Wide Voltage Operation
Easy False Ceiling Installation
Long-Lasting LED Performance

Applications: Homes, offices, shops, showrooms, hotels, schools, hospitals, corridors, reception areas and commercial spaces.

Efficient, Versatile Design

This slim panel light is engineered for energy efficiency, providing more than 100 lumens per watt and a power factor exceeding 0.95. Its slim profile fits seamlessly in office ceilings, hospitals, schools, or commercial buildings. Installation is hassle-free and can be tailored to recessed, suspended, or surface mounting configurations.

Customizable Illumination

Choose from customizable options like wattage (36W/40W/45W) and color temperature (3000K/4000K/6000K) for just the right ambiance-warm white, cool white, or daylight. Advanced dimming capabilities, including 0-10V, Triac, or DALI, are available on request for adaptable lighting control in any setting.

Reliable Performance & Durability

Constructed with a robust aluminum housing and polycarbonate diffuser, the panel ensures longevity, boasting a lifespan over 50,000 hours. Operating reliably in a wide humidity (10%-90% RH, non-condensing) and temperature range, it's ideal for demanding environments where consistent, high-quality light is required.

FAQ's of 1*4 SLIM PANEL LIGHT:

Q: How is the 1x4 Slim Panel Light installed?

A: The 1x4 Slim Panel Light offers flexible installation options, including recessed, surface-mounted, and suspended configurations. Its slim profile makes it suitable for drop ceilings or direct mounting, and all necessary hardware is included for a straightforward setup.

Q: What are the dimming options available for this panel light?

A: This panel supports optional dimming via 0-10V, Triac, or DALI controls, which must be requested at the time of order. The dimming feature allows users to adjust brightness for energy savings and customized lighting environments.

Q: When should I use each color temperature option?

A: Use 3000K (Warm White) for comfortable, inviting spaces such as waiting rooms or lounges. Opt for 4000K (Cool White) in work areas like offices or classrooms. Select 6000K (Daylight) for environments requiring crisp, high-visibility lighting, such as hospitals and laboratories.

Q: Where is this slim panel light commonly used?

A: This panel is ideal for offices, hospitals, commercial buildings, and schools due to its efficient performance, customizable lighting, and reliable operation. Its clean white finish and rectangular shape blend seamlessly into modern interiors.

Q: What are the main benefits of using the 1x4 Slim Panel Light?

A: Key benefits include high luminous efficacy, flicker-free operation, long lifespan (over 50,000 hours), instant-on performance, and low maintenance. It ensures comfortable, consistent illumination while reducing energy costs.

Q: How does the panel light ensure safety and power quality?

A: With an isolated, high-efficiency external driver, the panel keeps total harmonic distortion below 15% and boasts a power factor greater than 0.95. This ensures safe, stable operation and compatibility with a wide voltage range (AC 100-277V).

Q: What is the process for requesting custom wattage or dimming features?

A: To request a custom wattage (36W, 40W, or 45W) or specific dimming capabilities, contact the manufacturer or supplier at the time of ordering. They will guide you through available options to best suit your application needs.
