22w Panel light

22w Panel light Specification

Beam
120 Wide Angle

Shape
Square

Power Supply
External Driver included

Light Color
Cool White

Efficiency (%)
>85%

Response Time
<1 second

Life Span
>=25,000 hours

Housing
Aluminium

Operating Temperature
-10C to 50C

Current Rating
0.10A (approximate, based on 22W/220V)

Humidity %
Up to 90% RH (non-condensing, typical for indoor luminaires)

Control Type
On/Off

Product Type
Slim Panel Light

Material
Aluminium and Polycarbonate

Base
Recessed Mount

Power Factor
>0.90

Input Voltage
AC 165-265V

Working Temperature
-10C to 50C (typical for LED panels, confirm with manufacturer)

Lamp Power
22W

Application
Office, Residential, Commercial Spaces

Size
225mm x 225mm (outer dimension, estimated)

Dimension (L*W*H)
225mm x 225mm x 20mm (estimated from visual proportion, confirm with manufacturer)

Weight
Approx. 400g (estimated, confirm with manufacturer)

Color
White

LED Type
SMD LED

Color Temperature
6500K (Cool White, based on common spec)

IP Rating
IP20 (typical for indoor panel, confirm with manufacturer)

Flicker Free
Yes

CRI (Color Rendering Index)
>80

Dimmable
No

Installation
Surface/Recessed Mounting Clips Included

UV/IR
No UV or IR Emission

Surge Protection
2.5KV (typical for LED panel, confirm specification)

22w Panel light About

22W LED Panel Light Product Description

SONSHIV 22W LED Panel Light is an energy-efficient and stylish lighting solution designed for homes, offices, shops, showrooms, hotels, schools, hospitals, and commercial spaces. It provides bright, uniform, and comfortable illumination while consuming less electricity.

Its slim and modern design makes it ideal for false ceilings and contemporary interiors. The high-quality LED technology ensures excellent brightness, low power consumption, minimal heat generation, and reliable long-term performance.

Key Features:

Power: 22W
Energy-saving LED technology
Bright and uniform light
Slim and elegant design
Suitable for false ceiling installation
Low heat generation
Long-lasting performance
Low maintenance
Ideal for residential and commercial applications
Available in different colour temperatures as required

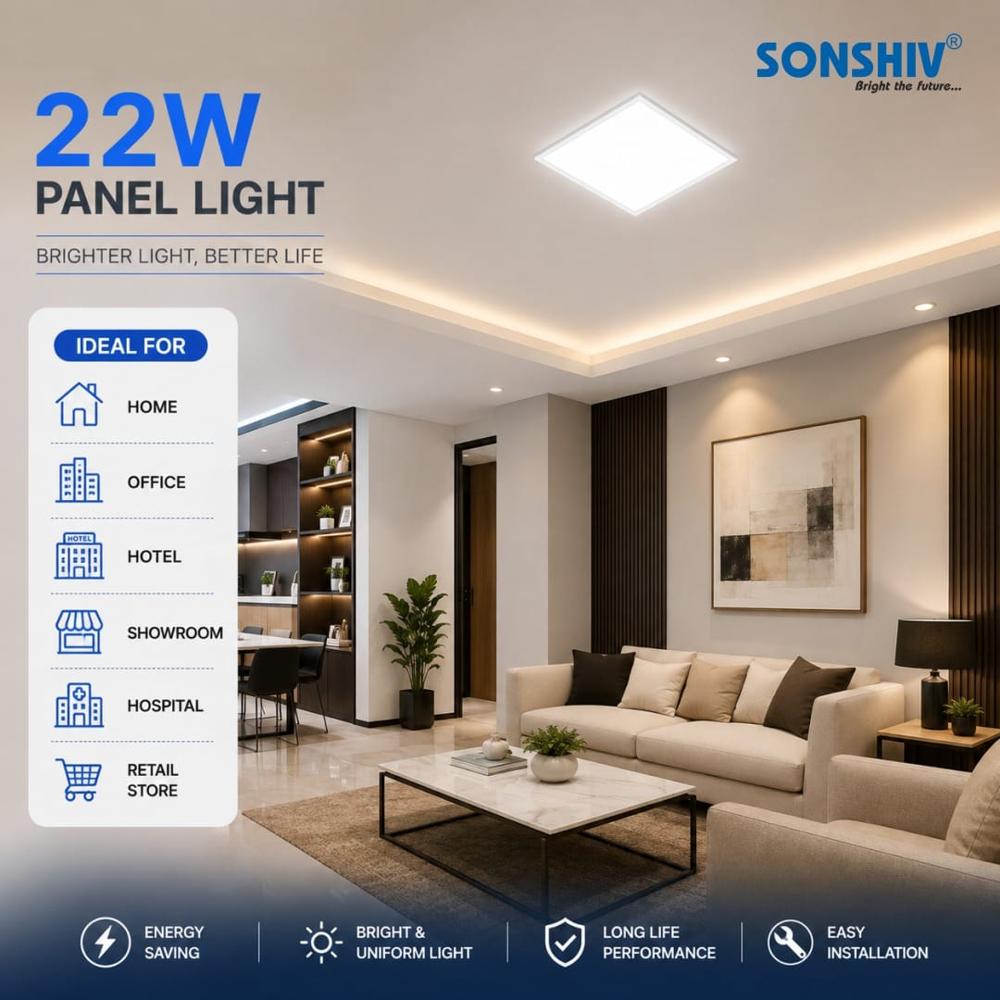

Applications: Homes, offices, shops, showrooms, hotels, restaurants, corridors, schools, hospitals, and other indoor spaces.

SONSHIV 22W LED Panel Light combines modern design, efficient performance, and reliable illumination, making it an excellent choice for everyday indoor lighting.

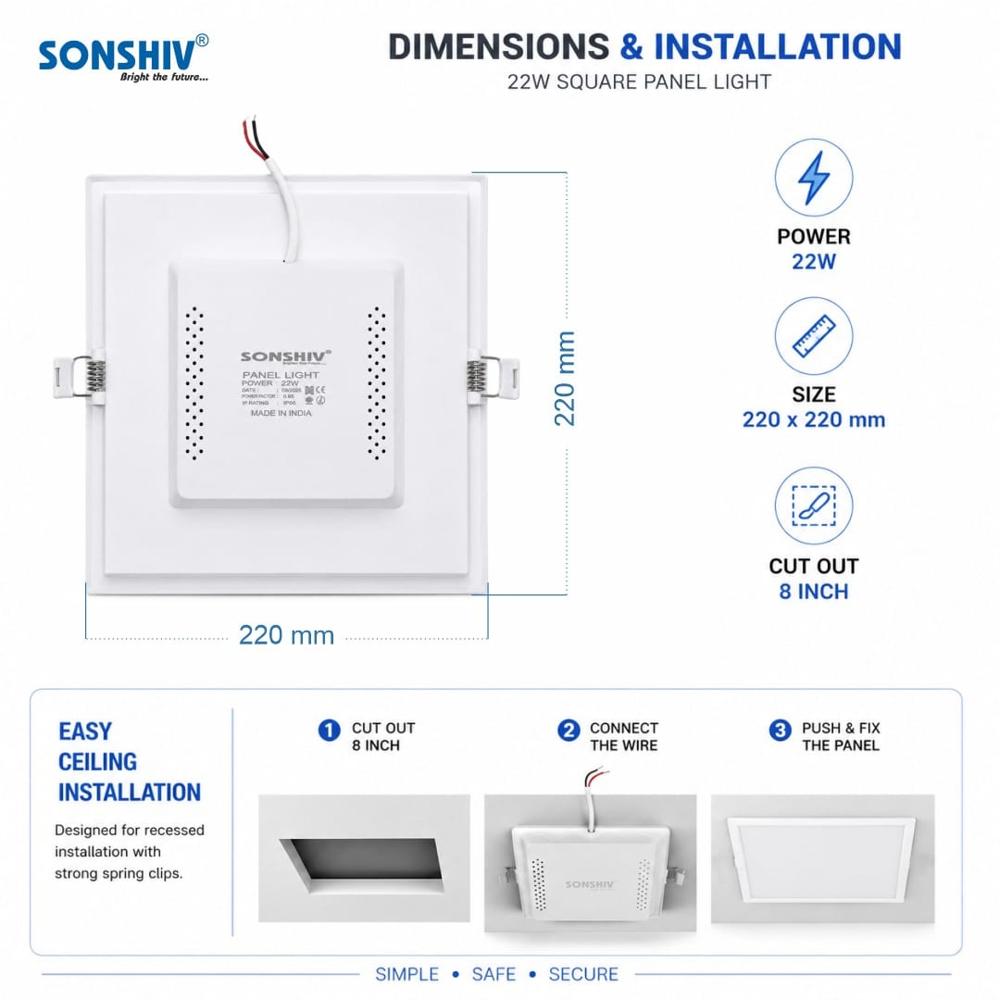

All-Inclusive Installation Options

This 22W panel light comes equipped with both surface and recessed mounting clips, giving users the flexibility to install it on ceilings or walls depending on their space requirements. The simple installation process means minimal tools and effort are needed, making it ideal for offices, homes, and commercial venues. Whether you want a sleek flush finish or an easy-access surface mount, these options are included for your convenience.

High Performance and Durability

Enjoy a cool white 6500K light output with high color rendering (CRI >80) for true-to-life illumination. The panel is flicker-free and boasts a wide 120 beam angle, ensuring even light distribution. Built with robust aluminium housing and a polycarbonate diffuser, it features surge protection up to 2.5KV, ensuring long-lasting performance with a life span of at least 25,000 hours under demanding conditions.

Safe, Eco-Friendly Lighting Solution

Designed for indoor use, the panel light is free from harmful UV and IR emissions, making it suitable for environments that prioritize health and safety. Its high efficiency (>85%) reduces power consumption, and a power factor above 0.90 minimizes energy loss. With no dimming feature, control is straightforward-simply use a standard on/off switch. Its IP20 rating makes it suitable for dry conditions typical of offices and living spaces.

FAQ's of 22w Panel light:

Q: How do I install the 22W Panel Light with the included mounting clips?

A: The 22W LED panel light can be installed either as a recessed or surface-mounted fixture using the supplied mounting clips. For recessed installation, fit the panel into a suitably sized ceiling or wall cutout, securing it with the spring clips. For surface mounting, attach the clips to the mounting surface and snap the panel into place.

Q: What spaces are suitable for using this 22W panel light?

A: This LED panel light is ideal for offices, residences, and commercial spaces such as retail stores, corridors, and meeting rooms. It is designed for indoor environments with low dust or moisture exposure, suiting areas where uniform, cool white illumination is desired.

Q: When should I consider replacing my panel light?

A: The panel has an estimated lifespan of over 25,000 hours. You may need to replace it if you observe a significant drop in brightness or if the panel fails to turn on. Proper installation and use within specified voltage and temperature ranges will maximize its longevity.

Q: Where should this panel light not be installed?

A: Avoid installing the 22W panel light in outdoor environments, areas with excessive moisture, or locations prone to water splash, as its IP20 rating only provides protection against basic solid objects and not against water ingress.

Q: What materials are used in the construction of this panel light?

A: The housing is made from durable aluminium for efficient heat dissipation and structural strength, while the light-diffusing cover is crafted from high-quality polycarbonate to ensure even light distribution without flicker or glare.

Q: How does the surge protection feature benefit the panel light?

A: The panel includes built-in surge protection rated at 2.5KV, which helps shield it from voltage spikes, enhancing its operational reliability and safeguarding connected electrical circuits.

Q: Is this LED panel light dimmable or compatible with control systems?

A: No, this panel light is not dimmable and operates as an on/off fixture. It is controlled using a standard wall switch and is best suited for applications where simple illumination control is desired.
