1*1 SURFACE PANEL LIGHT

1*1 SURFACE PANEL LIGHT Specification

Response Time
<0.1s

Power Supply
External Driver

Shape
Square (Panel)

Humidity %
90% RH, non-condensing

Life Span
30,000 to 50,000 hours

Beam
120

Control Type
Standard On/Off

Operating Temperature
-10C to 45C

Light Color
Warm White / Natural White / Cool White

Current Rating
0.18A-0.2A

Efficiency (%)
>85%

Housing
Aluminium Extrusion

Product Type
Surface LED Panel Light

Material
Aluminium + Polycarbonate Diffuser

Base
Surface Mount

Power Factor
>0.90

Input Voltage
AC 85-265V

Working Temperature
-10C to 45C

Lamp Power
18W / 22W / 24W (options)

Application
Commercial & Residential Lighting, Offices, Showrooms, Corridors

Size
1x1 feet

Dimension (L*W*H)
300mm x 300mm x 35mm

Weight
Approx. 1.2kg

Color
White

LED Type
SMD LED

Color Temperature
3000K / 4000K / 6500K

IP Rating
IP20

Surge Protection
2.5kV

Lumen Output
>2200 lm (for 22W variant)

Energy Class
A+

Dimmable
Optional, on request

CRI (Color Rendering Index)
>80 Ra

Driver Type
Isolated, Flicker-Free Driver

Standards
Complies with IS & IEC standards

Mounting Type
Surface Mounted

1*1 SURFACE PANEL LIGHT About

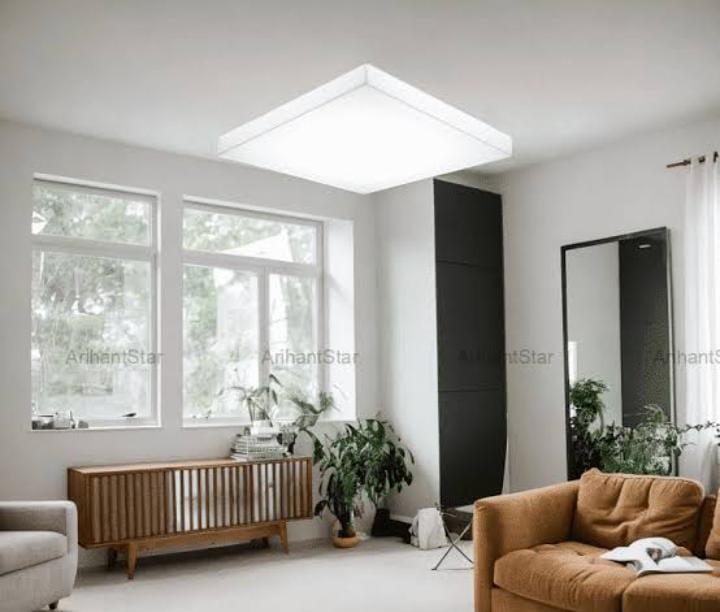

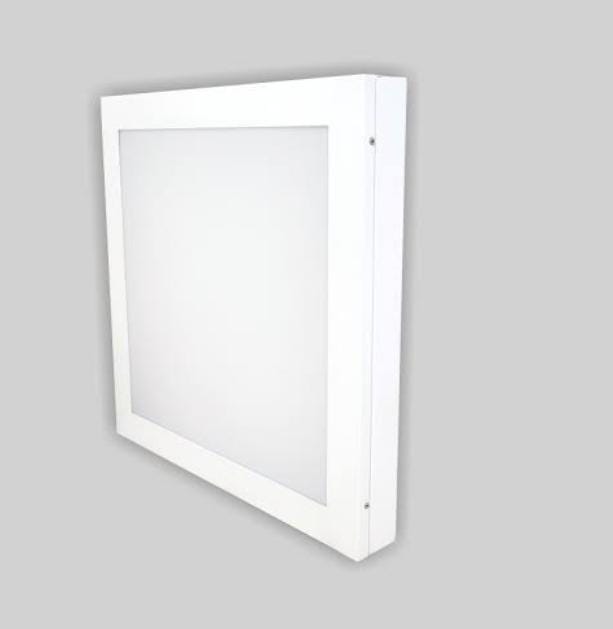

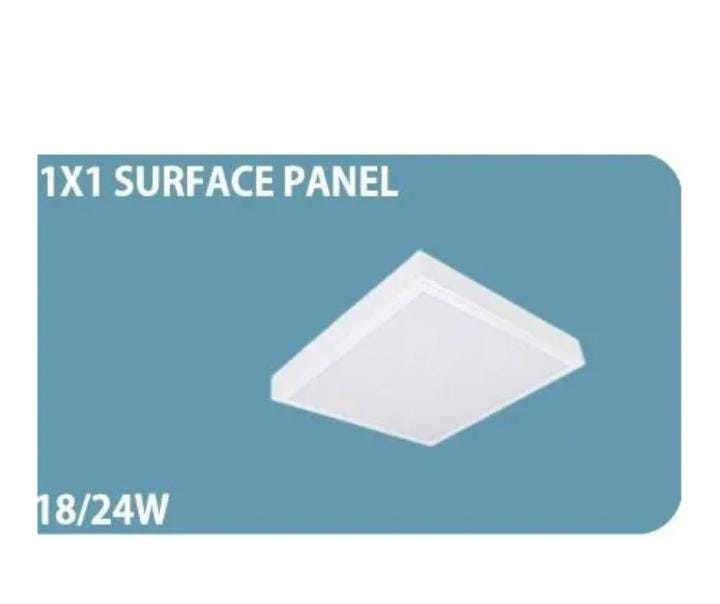

11 Surface Panel Light is a modern and compact LED lighting solution designed for direct ceiling or wall mounting without requiring a false ceiling. It provides bright, uniform illumination with a clean and stylish appearance. 11 surface panels are available in different wattages; 24W is a suitable option for brighter indoor applications. (Goodlite)

Key Features:

Power: 24W
Size: 11 ft
Shape: Square
Mounting: Surface Mounted
Body: Durable & lightweight housing
Light: Bright and uniform illumination
Colour Options: Cool White / Neutral White / Warm White
Wide Beam Angle: Around 120 depending on model
Energy Efficient
Low Maintenance
Easy Installation

Applications: Homes, offices, shops, showrooms, hotels, reception areas, corridors, schools, hospitals and commercial spaces.

Superior Lumen Output and Efficiency

Experience exceptional brightness and energy savings with over 2200 lumens output for the 22W variant and an efficiency exceeding 85%. This panel light meets energy class A+ standards, ensuring lower energy consumption without compromising illumination quality. Its wide 120 beam angle efficiently lights up rooms, making it perfect for both task and ambient lighting requirements.

Flexible Installation and Application

Designed for effortless surface mounting, the panel suits a range of settings, from offices and showrooms to corridors and residential spaces. Available in 18W, 22W, and 24W power ratings, it adapts to varied lighting needs. The panel's robust aluminium extrusion housing and IP20 rating ensure durability in dry indoor environments.

True-to-Life Color Rendering

With a CRI above 80 Ra, this surface panel light displays colors naturally and accurately, essential for workspaces, retail displays, and any area where visual clarity matters. The panel supports three color temperatures-warm, natural, and cool white-providing options to create the desired ambiance or highlight architectural features.

FAQ's of 1*1 SURFACE PANEL LIGHT:

Q: How is the 1x1 Surface Panel Light installed?

A: The panel is designed for easy surface mounting with the included hardware, making it suitable for ceilings and walls in commercial or residential interiors. Simply follow the installation manual for safe and secure fitting.

Q: What are the available power and color temperature options for this panel?

A: This surface panel light comes in 18W, 22W, and 24W power variants with color temperature choices of 3000K (Warm White), 4000K (Natural White), and 6500K (Cool White) to meet different lighting preferences.

Q: When is it beneficial to use this panel light in my space?

A: This panel light is ideal for use in offices, showrooms, corridors, and homes where high brightness, energy efficiency, and outstanding color rendering are important. Its flicker-free, isolated driver ensures visual comfort for extended usage.

Q: Where can the 1x1 Surface Panel Light be used?

A: Suitable for indoor settings, the panel is perfect for commercial properties, residential environments, offices, retail areas, and corridors due to its IP20 rating and robust aluminium housing.

Q: What makes the panel light's driver unique?

A: The panel is equipped with an isolated, flicker-free external driver, ensuring electrical safety and consistent light output without irritating flicker, which enhances user comfort and protects sensitive equipment.

Q: How long does the panel light last and what maintenance does it require?

A: Designed for durability, the panel offers a lifespan of 30,000 to 50,000 hours under standard operating conditions. It requires minimal maintenance-occasional dusting of the diffuser and checking of connections suffice to keep it functioning optimally.

Q: What are the key benefits of choosing this surface panel light?

A: This panel combines high luminous efficiency, stable and flicker-free operation, versatile mounting, and a choice of light colors. It adheres to IS & IEC standards, features strong surge protection, and facilitates energy savings, making it a reliable lighting upgrade for modern spaces.
