22w slim round panel

22w slim round panel Specification

Housing
Polycarbonate with aluminum backing

Shape
Round

Response Time
Instant-on (1s)

Beam
120

Operating Temperature
-10C to 45C

Efficiency (%)
85%

Power Supply
External driver supplied

Control Type
Standard on/off

Current Rating
180 mA

Light Color
Cool White / Neutral White / Warm White

Humidity %
85% RH

Life Span
30,000 hours

Product Type
22W Slim Round LED Panel

Material
Polycarbonate housing, Aluminum back

Base
Surface/ceiling mount

Power Factor
0.90

Input Voltage
AC 85-265V

Working Temperature
-10C to 45C

Lamp Power
22W

Application
Indoor lighting (offices, homes, showrooms)

Size
220 mm diameter

Dimension (L*W*H)
220 mm (D) x 20 mm (H)

Weight
Approx. 350g

Color
White

LED Type
SMD LED

Color Temperature
6500K / 4000K / 3000K

IP Rating
IP20

CRI (Color Rendering Index)
80

Cut Out Size
205 mm

Dimmable
Optional (on request)

Energy Efficiency Class
A++

Surge Protection
2.5kV

Driver Type
Isolated, flicker-free

22w slim round panel About

22W Slim Round LED Panel Light is a modern and energy-efficient lighting solution designed to provide bright, uniform, and comfortable illumination. Its ultra-slim round design offers an elegant appearance and blends seamlessly with modern ceilings and interiors.

It is ideal for residential and commercial applications, providing excellent illumination with low power consumption. The panel is suitable for false ceilings and surface installations, depending on the mounting design.

Key Features:

Power: 22W
Shape: Round
Slim and stylish design
Bright and uniform illumination
Energy-efficient LED technology
Low power consumption
Excellent heat management
Easy installation
Low maintenance
Suitable for long operating hours

Applications: Homes, offices, shops, showrooms, hotels, restaurants, schools, reception areas, corridors, and commercial spaces.

Superior Energy Efficiency and Longevity

Rated A++ for energy efficiency, this 22W slim round panel conserves power while delivering substantial brightness. It boasts an outstanding lifespan of up to 30,000 hours, minimizing the need for frequent replacements and lowering overall maintenance costs for both residential and commercial spaces.

Optimal Lighting Performance and Flexibility

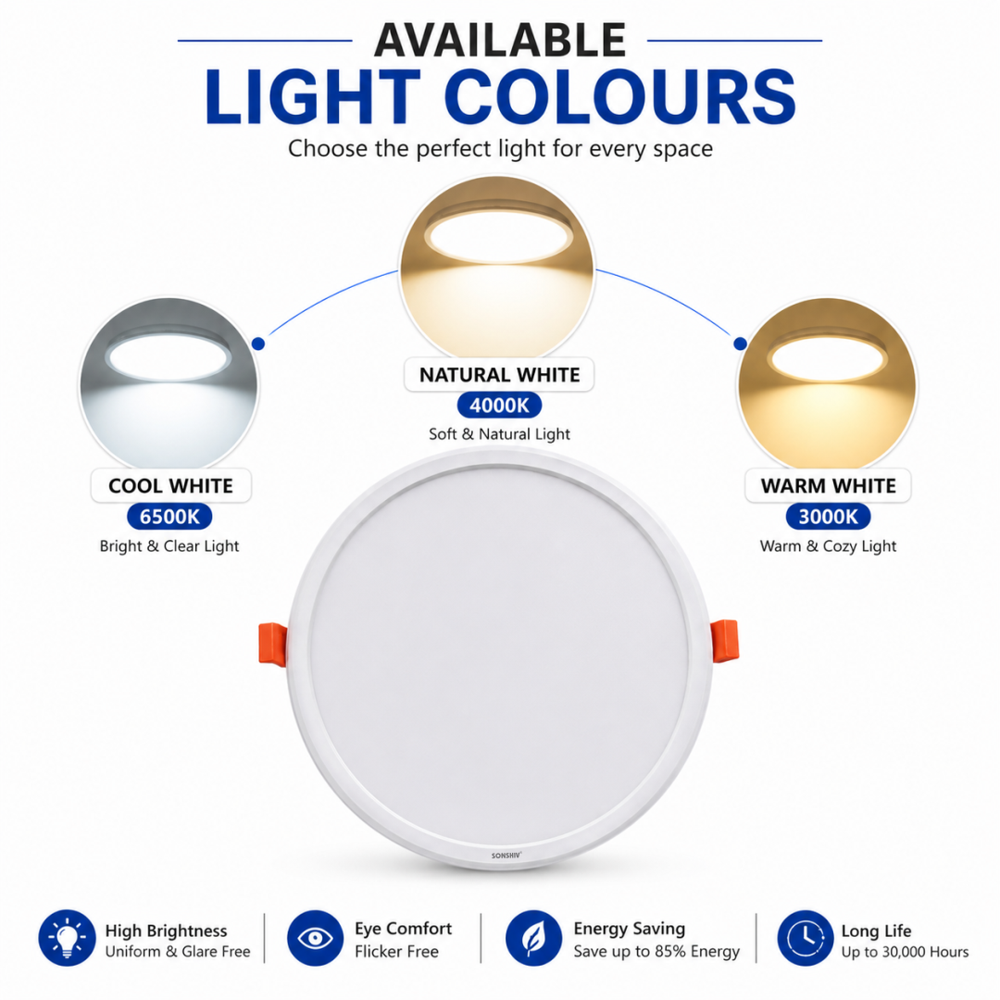

Featuring a high CRI of 80, the panel renders colors accurately and vividly, enriching any environment. Three selectable color temperatures (6500K, 4000K, 3000K) let you customize ambiance, while the broad 120 beam ensures even, wide-area illumination. Optional dimmable functionality is available upon request.

Robust Build and Easy Installation

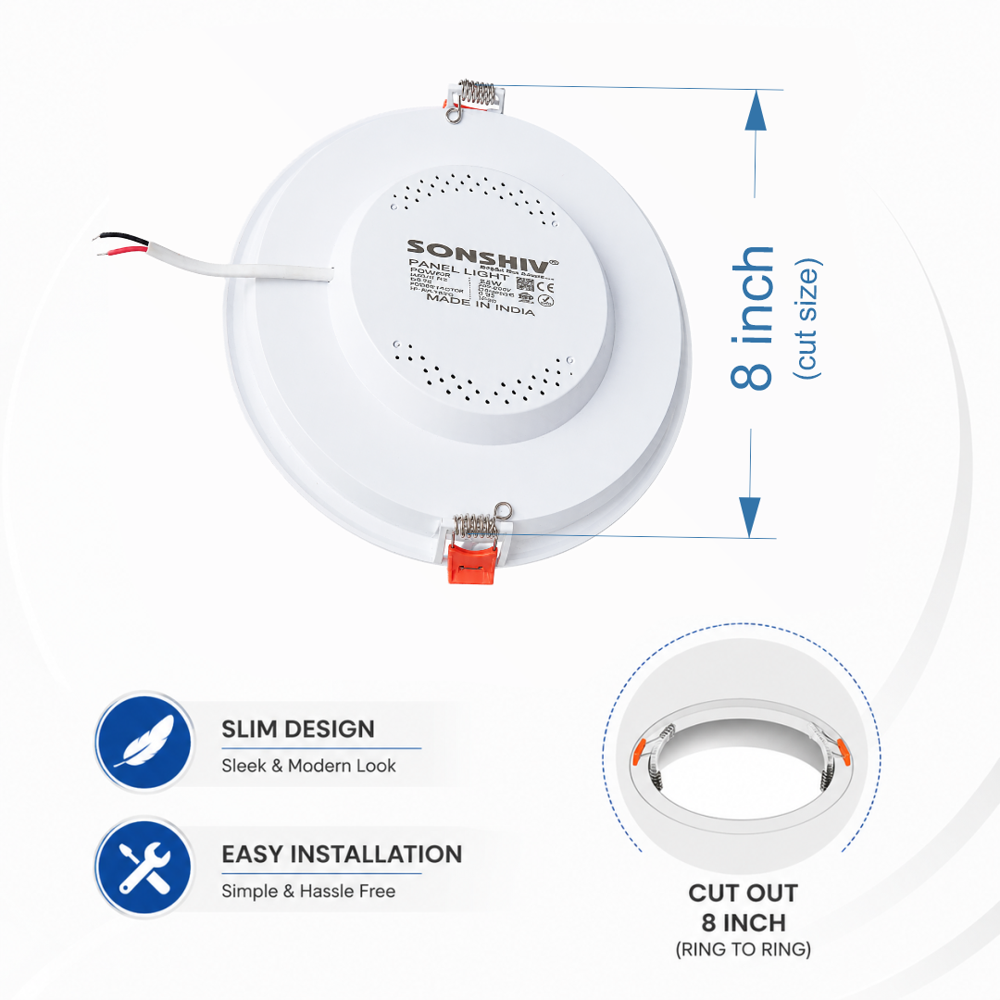

Constructed with a polycarbonate housing and aluminum backing, this slim panel is both lightweight and sturdy. Installation is straightforward with its 205 mm cutout and both surface or ceiling mounting options, making it ideal for homes, offices, or showrooms that demand modern lighting solutions.

FAQ's of 22w slim round panel:

Q: How is the 22W slim round panel installed?

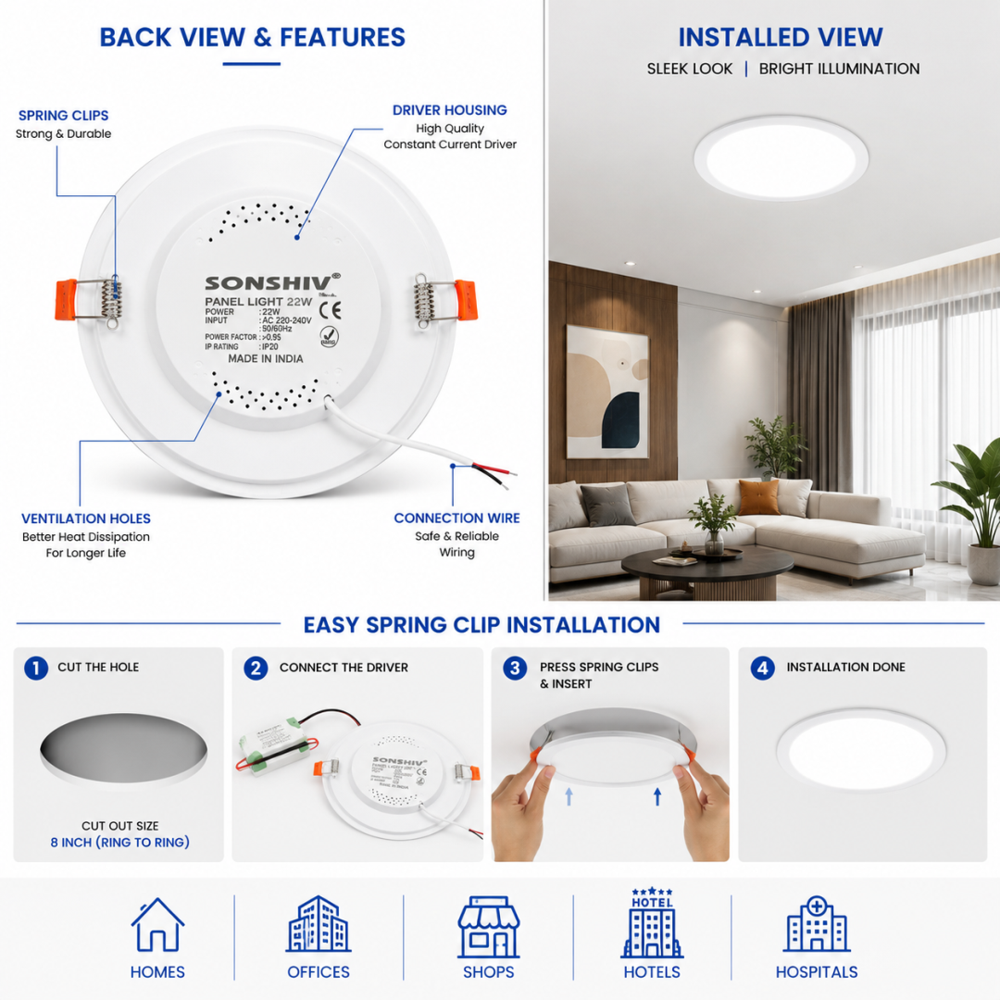

A: The slim round panel is designed for easy installation and can be surface-mounted or ceiling-mounted. It requires a 205 mm cutout, and the external isolated driver must be connected to a standard AC 85-265V power supply. Detailed instructions are provided to ensure a safe and straightforward setup.

Q: What are the benefits of the isolated, flicker-free driver in this panel?

A: The isolated, flicker-free driver ensures safety by separating input and output circuits, reducing the risk of electric shock. It also eliminates visible flicker, which enhances visual comfort and protects eyesight, making it suitable for areas where people spend extended periods under artificial lighting.

Q: When should I consider the dimmable option for this panel?

A: The dimmable feature is available upon request and is ideal if you need adjustable lighting to suit various settings or moods, such as conference rooms, living spaces, or display areas. Discuss the option during purchase to ensure you receive the correct configuration.

Q: Where can the 22W slim round panel be used?

A: This panel is intended for indoor use, thanks to its IP20 rating and operating temperature range of -10C to 45C. Common applications include offices, homes, and showrooms, where efficient and aesthetic lighting is essential.

Q: What process ensures the panel's safety and durability?

A: The panel includes surge protection up to 2.5kV and features a robust polycarbonate housing with an aluminum back. These components help withstand electrical fluctuations and mechanical stress, ensuring long-term performance in demanding indoor environments.

Q: How does the panel improve the indoor environment?

A: With a high Color Rendering Index (CRI) of 80 and a uniform 120 beam angle, the panel offers superior color accuracy and wide illumination. The choice of cool, neutral, or warm white light allows you to set the perfect atmosphere for work, relaxation, or presentation.
