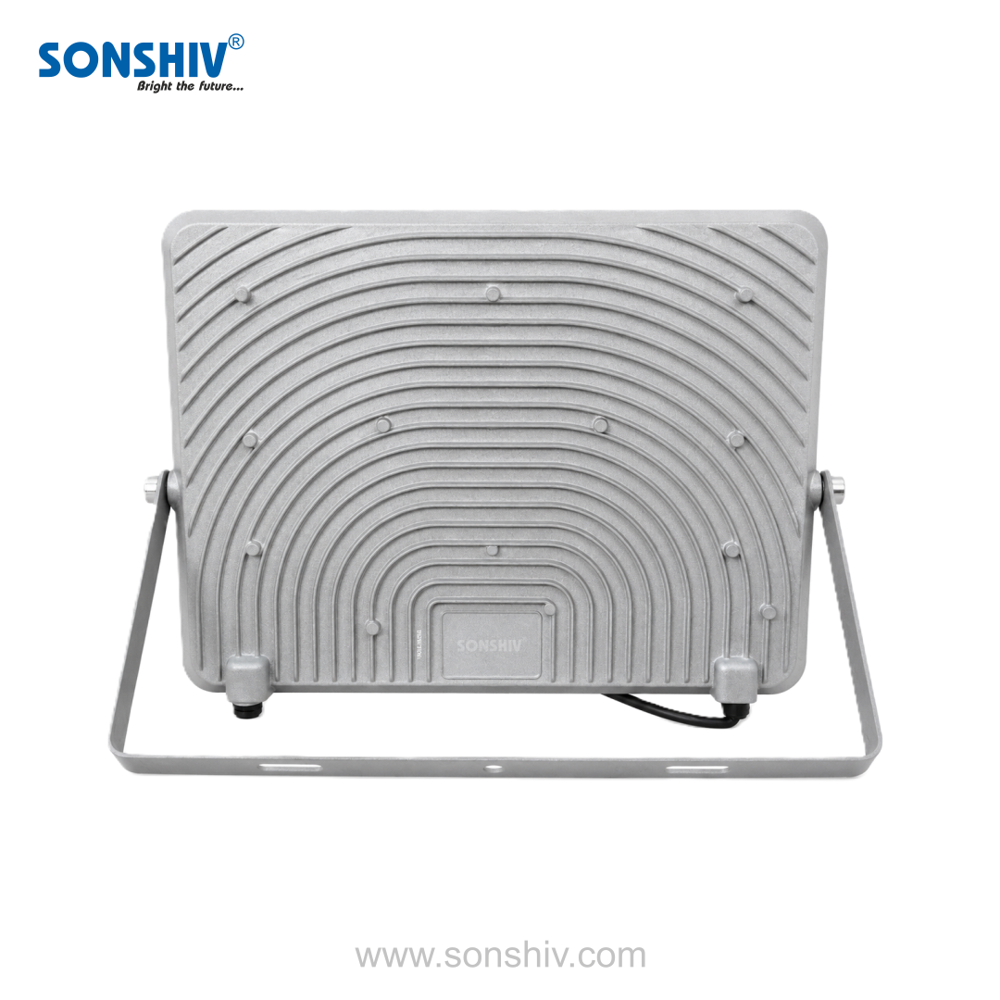

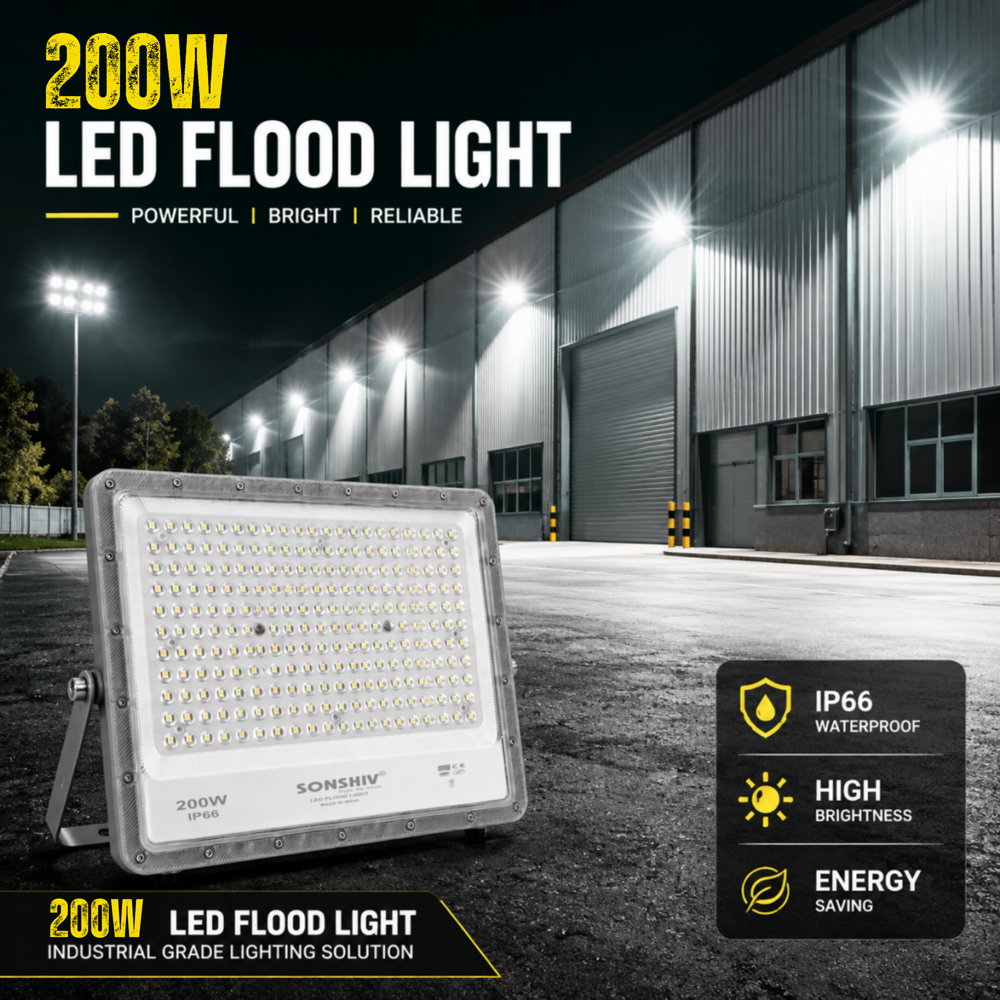

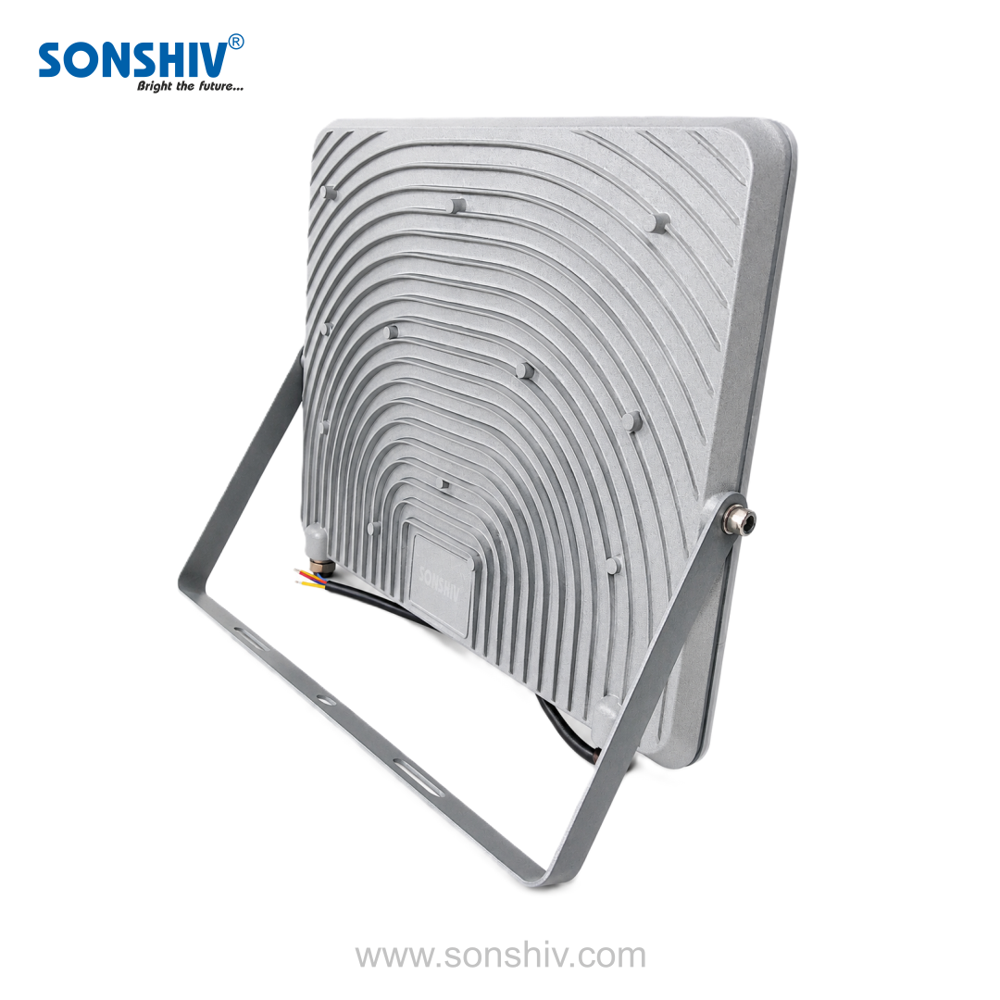

200W DOB WHITE FLOOD LIGHT

200W DOB WHITE FLOOD LIGHT Specification

Product Type
Flood Light

Material
Aluminum Die Cast

Power Supply
AC

Voltage
220-240V

Rated Power
200W

Application
Outdoor, Stadium, Garden, Industrial Area, Warehouses

Input Voltage
220-240V AC

IP Rating
IP66

Rated Frequency
50/60 Hz

Color
White

Weight
Approximately 2.8 kg

Dimension (L*W*H)
360mm x 320mm x 55mm (approx)

Power Consumption
200W

Base Type
Surface Mount/Bracket Mount

Mounting
Adjustable Bracket Mount

Cable Entry
Rubber Gland

Housing Finish
Powder Coated

Operating Temperature
-20C to +50C

Fixture Color
Grey/Silver

Lumens
20000-22000 lm

Beam Angle
120 Degrees

Lens Material
Toughened Glass

Surge Protection
4kV

LED Technology
DOB (Driver on Board)

CRI (Color Rendering Index)
>80

Efficiency
>90%

200W DOB WHITE FLOOD LIGHT About

200W DOB White Flood Light is a high-power and energy-efficient lighting solution designed for powerful, wide-area illumination. Built with Driver on Board (DOB) technology, it offers a compact design, reliable performance and efficient LED operation. The SONSHIV 200W model features a die-cast aluminium body, cool white light, glass lens, IP66 protection and 120 beam angle.

Key Features

Power: 200W
Technology: DOB Driver on Board
Light Color: Cool White
Body: Aluminium Die-Cast
Lens: Glass
IP Rating: IP66
Beam Angle: 120
Body Type: Back Choke
Warranty: 2 Years
High Brightness & Wide Coverage
Strong Heat Dissipation
Low Maintenance & Energy Efficient

Applications

Ideal for factories, warehouses, stadiums, parking areas, construction sites, industrial premises, building facades, sports grounds, commercial complexes, large outdoor areas and high-mast lighting.

Advanced LED Lighting for Maximum Efficiency

With a high luminous output of 20,000-22,000 lumens and over 90% efficiency, the 200W DOB White Flood Light delivers superior brightness while minimizing energy consumption. Designed for wide coverage, it ensures broad illumination even in the largest outdoor and indoor spaces.

Durable Build for All-Weather Conditions

Constructed from powder-coated aluminum die-cast housing and featuring a toughened glass lens, this floodlight is built to withstand harsh environments. Its IP66 rating provides robust protection against dust and water, making it suitable for outdoor applications year-round.

Easy and Flexible Installation

The adjustable bracket mount and surface mounting options offer flexibility, allowing you to direct the light precisely where needed. Cable entry is simplified with a rubber gland, enabling swift and straightforward installation in a variety of settings.

FAQ's of 200W DOB WHITE FLOOD LIGHT:

Q: How do I install the 200W DOB White Flood Light?

A: Installation is straightforward using the adjustable bracket mount, which allows for secure attachment to flat surfaces or walls. The fixture comes with a rubber gland for cable entry, ensuring a safe and weather-resistant electrical connection.

Q: What environments is this flood light suitable for?

A: Thanks to its IP66 rating and durable construction, the 200W DOB White Flood Light is perfect for both outdoor and indoor use in stadiums, gardens, industrial areas, and warehouses, providing reliable illumination in various weather conditions.

Q: When should I consider using this flood light over other options?

A: This flood light is a top choice when you require high-lumen output, broad beam coverage, and efficient power usage in large areas. It's especially effective for security, event lighting, and professional-grade applications where reliability is critical.

Q: Where is the best place to mount this flood light?

A: Ideally, mount the flood light on walls, ceilings, poles, or other stable surfaces where the adjustable bracket enables you to direct light toward the target area. Its wide beam angle maximizes illumination across open spaces.

Q: What is the process for maintenance and upkeep?

A: Maintenance is minimal due to the toughened glass lens and powder-coated housing, which resist corrosion and impact. Regularly check for debris and ensure that the cable gland remains securely fastened to prevent moisture ingress.

Q: How does the DOB (Driver on Board) technology benefit usage?

A: DOB technology integrates the LED driver directly onto the board, enhancing reliability, improving heat management, and reducing the risk of component failure, which extends the product's operational lifespan.

Q: What are the main benefits of using this 200W flood light?

A: The main benefits include high energy efficiency, robust durability, weather resistance, excellent color rendering (CRI >80), and simple installation. These features ensure optimal performance and long-term value in professional lighting applications.
