16mtr High Mask Pole

16mtr High Mask Pole Specification

Size
16 meters in height

Dimension (L*W*H)
16m x 1.5m x 1.5m

Beam
60/90/120 (as per luminaire type)

Diameter
Pole: 410-460 mm (bottom), 140-170 mm (top)

Power
200-400W per luminaire (customizable)

Head Diameter
1.2-1.5 meters (approx, at the top mast)

Product Type
High Mast Lighting Pole

Material
Hot Dip Galvanized Steel

Light Source
LED / Metal Halide (Optional)

Height
16 meters

Voltage
220-240V AC

Power Supply
AC 220-240V, 50/60 Hz

Usage
Outdoor lighting for stadiums, highways, airports, large areas

Protection Level
Corrosion Resistant, Weatherproof

Efficiency
High Lumen Output, Energy Efficient

Color Temperature
5700K (Cool White)

IP Rating
IP66 (Luminaire)

Color
Silver / Grey

Raising-Lowering System
Provided with motorized winch and pulley

Lighting Control
Optional remote / timer based

Wind Resistance
Designed for up to 180 km/h

Operating Temperature
-30C to +50C

Anchor Bolts
High-tensile, supplied with template

Base Plate Thickness
20-30 mm (customizable)

Number of Luminaires
12-24 (as per configuration)

Pole Finish
Hot-dip Galvanized as per IS:4759

Compliance Standards
IS 875, IS 2062, IS 2629, IS 4759, BS EN 40

Foundation Depth
2.5-3 meters

Cabinet
Galvanized Control Panel Box at base

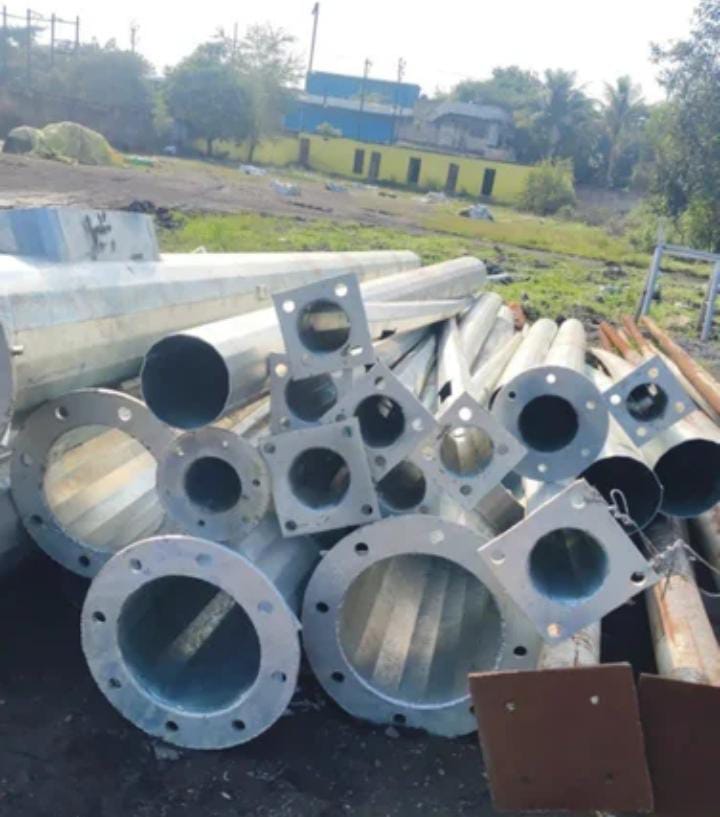

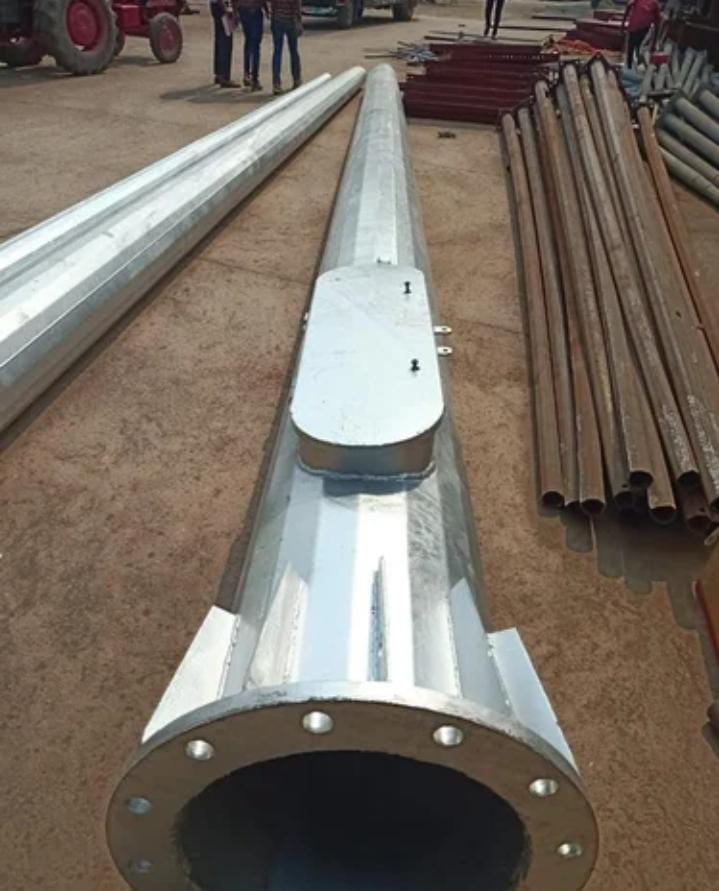

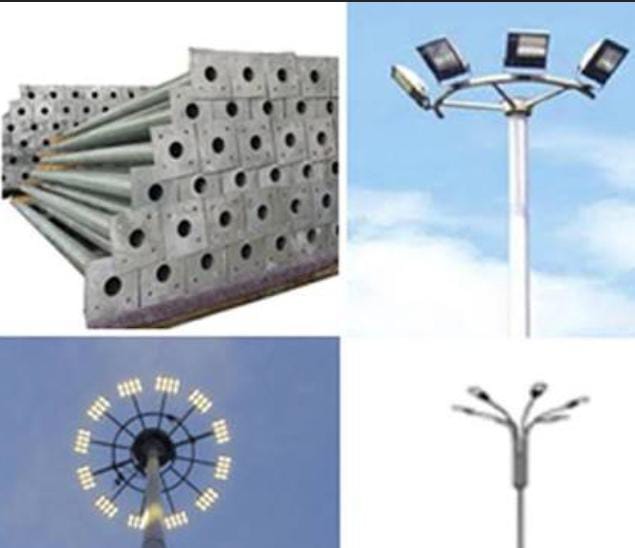

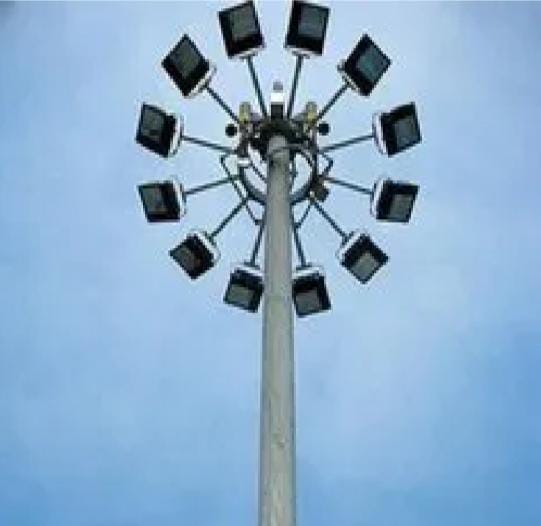

16mtr High Mask Pole About

The 16Mtr High Mast Pole is a robust and durable lighting structure designed to provide wide-area illumination for large outdoor spaces. Its 16-metre height enables LED flood lights to cover extensive areas efficiently, making it ideal for highways, stadiums, industrial premises, large parking areas and major infrastructure projects.

Key Features:

Height: 16 Metres
High mast pole design
Strong and durable construction
Suitable for high-power LED flood lights
Wide-area illumination
Corrosion-resistant finish
Stable and reliable structure
Designed for long-term outdoor use
Suitable for large-scale lighting projects

Applications: Highways, stadiums, sports grounds, industrial areas, airports, railway premises, ports, large parking lots, warehouses, commercial complexes and infrastructure projects.

Advanced Raising-Lowering System

This high mast pole uses a motorized winch and pulley system, streamlining the process of raising or lowering the luminaires for maintenance or inspection. This design significantly improves safety, reduces downtime, and makes servicing accessible from ground level.

Built for Extreme Conditions

Constructed from hot-dip galvanized steel as per IS:4759, the pole is highly resistant to corrosion and weather, making it ideal for challenging outdoor environments. The structure is robust enough to withstand wind speeds up to 180 km/h and operates reliably from -30C to +50C.

Customizable, Efficient Lighting

Choose from 12 to 24 high-lumen output luminaires, with LED or Metal Halide options, offering 200-400W per fitting. The lighting system is energy efficient, features cool white (5700K) color temperature, and can be configured for remote or timer-based control for maximum versatility.

FAQ's of 16mtr High Mask Pole:

Q: How does the raising-lowering system help in maintaining the high mast pole?

A: The raising-lowering system utilizes a motorized winch and pulley, allowing safe and easy lowering of the luminaires to ground level for maintenance, cleaning, or inspections. This eliminates the need for climbing or using cranes, enhancing safety and saving time.

Q: What locations and environments is this mast pole suitable for?

A: This mast pole is designed for outdoor use in stadiums, highways, airports, and other large areas. Its weatherproof and corrosion-resistant build enables reliable performance in varied climatic conditions, including regions with high wind or temperature extremes.

Q: When should the luminaires be serviced or replaced?

A: Luminaires should be serviced according to manufacturer recommendations or as required by local lighting regulations. The motorized lowering system allows routine inspections and cleaning without special lifting equipment, making scheduled maintenance quick and convenient.

Q: Where is the control cabinet located and what is its function?

A: The galvanized control panel box is installed at the base of the pole. It houses the lighting controls, power supply (220-240V AC), and automation equipment, which can include remote or timer-based controls for flexible lighting operation.

Q: What are the benefits of using hot-dip galvanized steel for the pole?

A: Hot-dip galvanized steel offers robust corrosion resistance, extending the lifespan of the mast even in harsh weather conditions. This results in reduced maintenance costs and reliable performance, in accordance with international quality standards such as IS:4759 and BS EN 40.

Q: How energy efficient is the lighting system, and what lamp types are available?

A: The pole accommodates high-efficiency LED or Metal Halide luminaires, each customizable between 200W and 400W per fixture. This ensures high lumen output with optimal energy consumption, providing cool white light at 5700K for excellent visibility.

Q: What process is involved in installing the mast, and what standards does it comply with?

A: Installation involves mounting the pole using supplied high-tensile anchor bolts on a deep concrete foundation (2.5-3 meters). All components comply with major standards including IS 875, IS 2062, IS 2629, IS 4759, and BS EN 40, ensuring safety and structural integrity.
