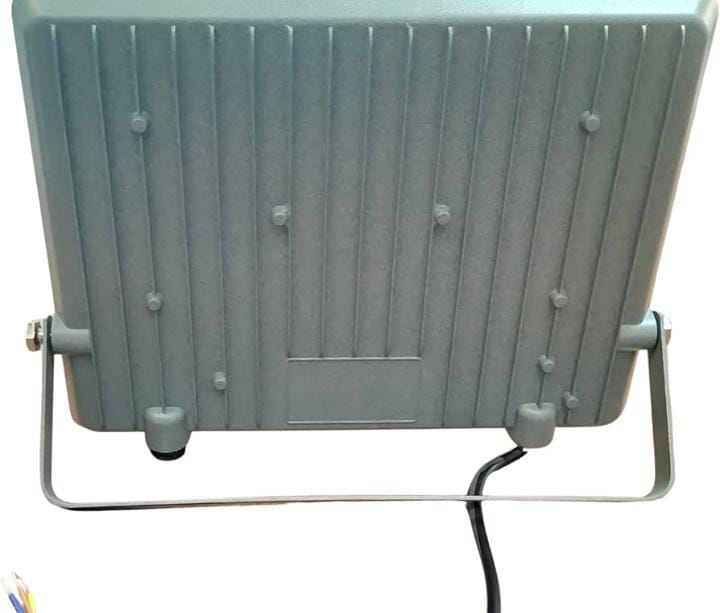

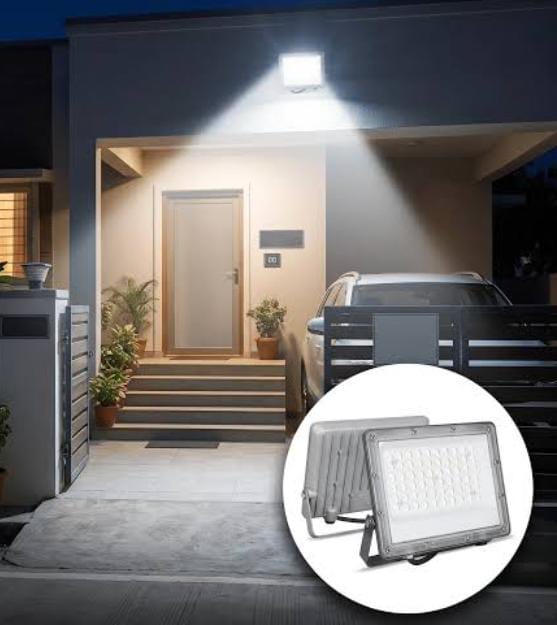

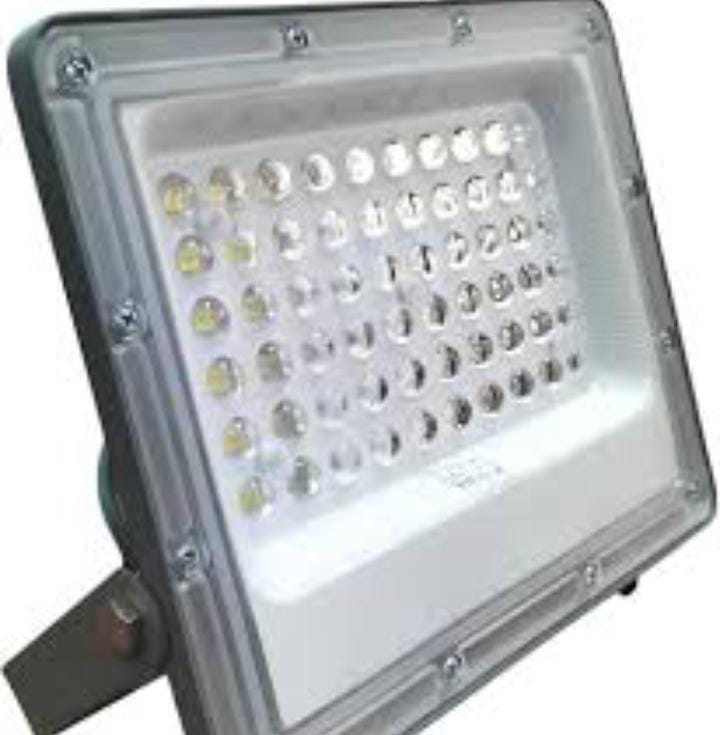

100W WHITE DOB FLOOD LIGHT

100W WHITE DOB FLOOD LIGHT Specification

Product Type
DOB LED Flood Light

Material
Aluminium Die Cast

Power Supply
AC

Voltage
220-240V

Rated Power
100W

Application
Outdoor illumination, parks, gardens, building facades, security lighting, parking lots

Input Voltage
AC 220-240V

IP Rating
IP65

Rated Frequency
50-60 Hz

Color
White

Weight
Approx 1.5 kg

Dimension (L*W*H)
Approx 300mm x 240mm x 50mm

Power Consumption
100W

Base Type
Panel mounted

Cable Length
Standard 1 meter

Housing Finish
Powder Coated

Lifespan
>30,000 hours

Instant Start
Yes, no flickering

CRI (Color Rendering Index)
>80

Color Temperature
6500K (Cool White)

Mounting Type
Adjustable Metal Bracket

Light Source
Integrated LED (DOB Technology)

Operating Temperature
-20C to +50C

Energy Efficiency
A+

Beam Angle
120

Humidity
10% - 90% RH Non-condensing

Luminous Flux
9000-10,000 lumens

Surge Protection
4kV

100W WHITE DOB FLOOD LIGHT About

100W White DOB Flood Light is a high-power, energy-efficient lighting solution designed to provide bright and uniform illumination for large indoor and outdoor areas. It uses DOB (Driver on Board) technology for a compact and reliable design. The SONSHIV model features an aluminium die-cast body, IP66 protection, cool white light, 120 beam angle and 2-year warranty.

Key Features

Power: 100W
Light Color: Cool White
Technology: DOB Driver on Board
Body: Aluminium Die-Cast
IP Rating: IP66
Beam Angle: 120
Lens: High-quality optical lens
Design: Back Choke
Warranty: 2 Years
Lighting: Bright and uniform illumination
Mounting: Adjustable bracket
Energy Efficient & Low Maintenance

Applications

Ideal for factories, warehouses, parking areas, building exteriors, stadium surroundings, construction sites, gardens, boundary walls, commercial spaces, industrial areas and security lighting

Exceptional Outdoor Performance

Engineered for demanding outdoor environments, this flood light offers reliable brightness with high luminous flux and color consistency. Its robust aluminium die-cast body and all-weather IP65 protection ensure durability, even in demanding climates. The combination of high CRI and cool white color temperature delivers natural, vibrant illumination.

Advanced LED Technology

Featuring DOB (Driver on Board) technology, the integrated LED light source provides instant start-up and eliminates flicker. The energy-efficient design (A+ rating) not only reduces power consumption but also extends the product's operational life. With 4kV surge protection built in, the light remains safe from power fluctuations.

Flexible Installation and Use

The adjustable metal bracket and standard one-meter cable offer easy and adaptable mounting for a wide range of applications. Designed for both security lighting and aesthetic appeal, it can effectively illuminate large outdoor spaces, building exteriors, and public venues with minimal effort and maximum impact.

FAQ's of 100W WHITE DOB FLOOD LIGHT:

Q: How is the 100W White DOB Flood Light installed?

A: The flood light comes with an adjustable metal bracket and a standard one-meter cable, allowing for easy panel-mounted installation. Simply secure it to the desired surface such as a wall, pole, or ceiling using appropriate fixtures.

Q: What areas are best suited for using this flood light?

A: This flood light is ideal for outdoor illumination, including parks, gardens, building facades, security lighting, and parking lots. Its wide 120 beam ensures effective coverage in both commercial and residential settings.

Q: When can I expect the flood light to operate efficiently in extreme conditions?

A: The light is designed to perform reliably within a temperature range of -20C to +50C and in humidity conditions from 10% to 90% non-condensing, making it suitable for use in diverse weather environments year-round.

Q: What makes the DOB Technology advantageous in this flood light?

A: DOB (Driver on Board) Technology integrates the driver directly onto the LED board, resulting in a more compact, energy efficient, and long-lasting lighting solution with instant start and no flicker, thus enhancing user experience.

Q: Where does this flood light provide safety and durability benefits?

A: With an IP65 rating and 4kV surge protection, the flood light is safe from dust, water jets, and electrical surges. Its powder-coated aluminium housing ensures additional resistance to corrosion and impact.

Q: How energy-efficient is the 100W White DOB Flood Light?

A: This flood light boasts an A+ energy efficiency rating, offering powerful illumination with optimized power consumption (100W) and a long lifespan of over 30,000 hours, reducing both energy costs and maintenance frequency.
